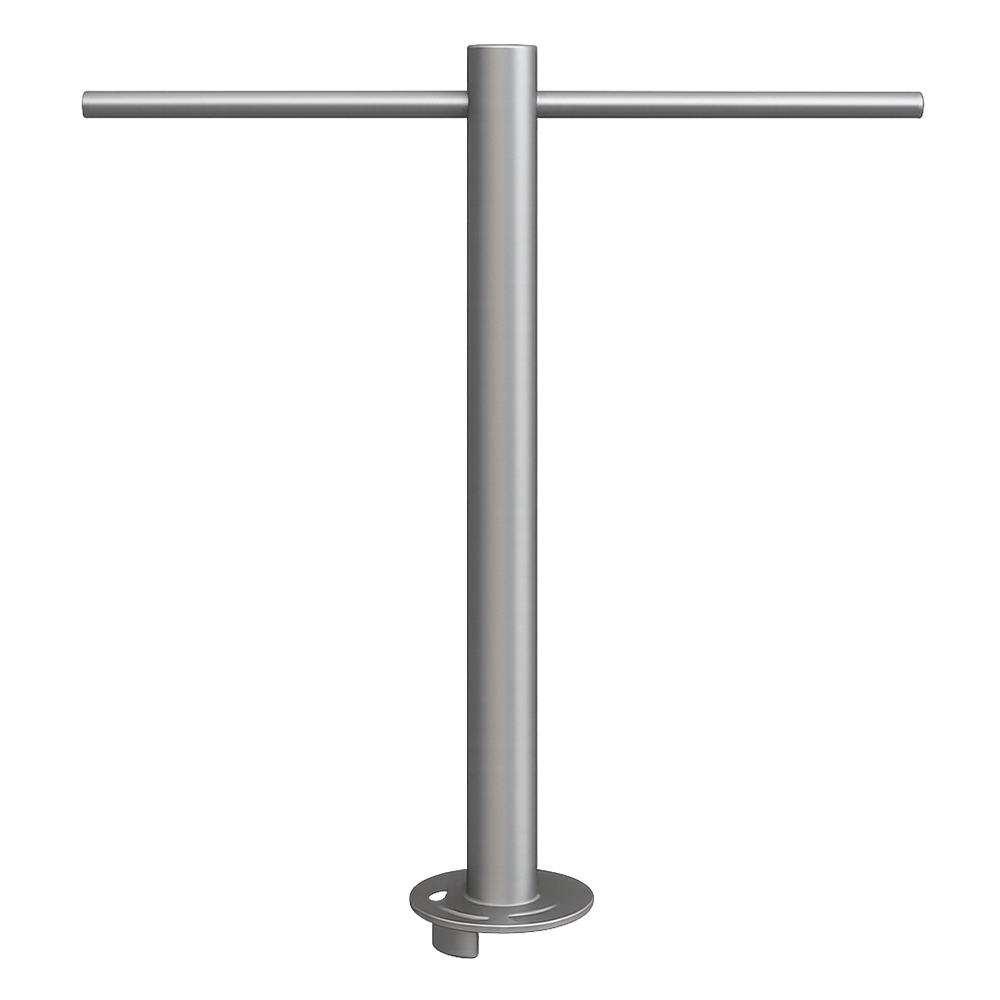

Manual Ground Screw Installation Tool (Round Flange)

£40.00 Ex. VAT

Compatible with:

900mm x 76mm ground screws (M16 center thread)
1200mm x 76mm ground screws (M16 center thread)

Standard Delivery Service
We deliver within 2–3 working days. Delivery charges are calculated based on the type and quantity of items in your order:

  • Up to 6 items: £10 per item
  • 7 or more items: Flat rate of £60
  • Ground Screw Installation Tool: £10 flat rate

Delivery costs are applied per product and calculated automatically at checkout.

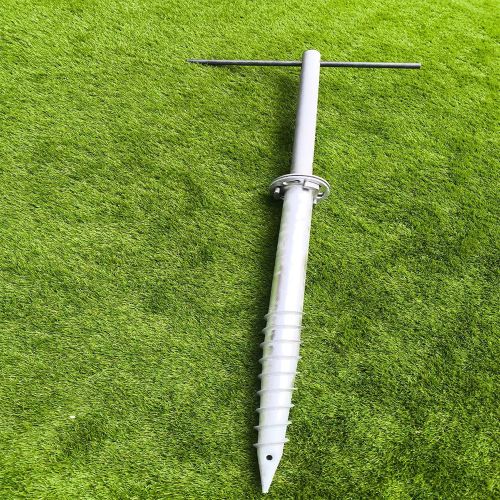

Ground Screw Installation Tool – Compatible with 900mm & 1200mm Ground Screws (M16)

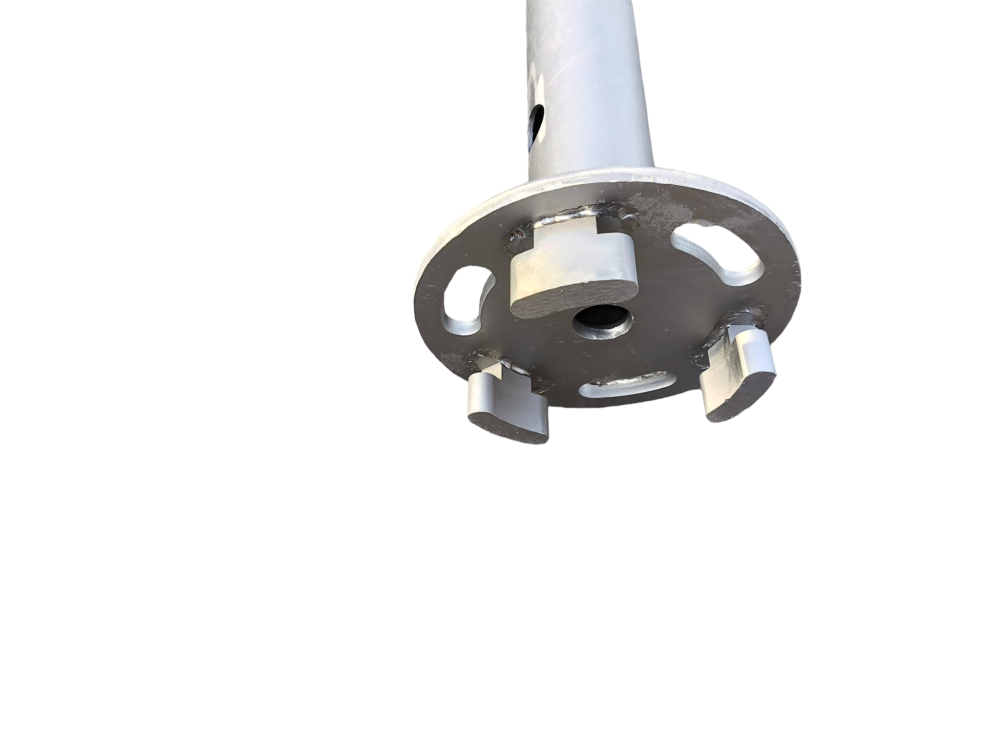

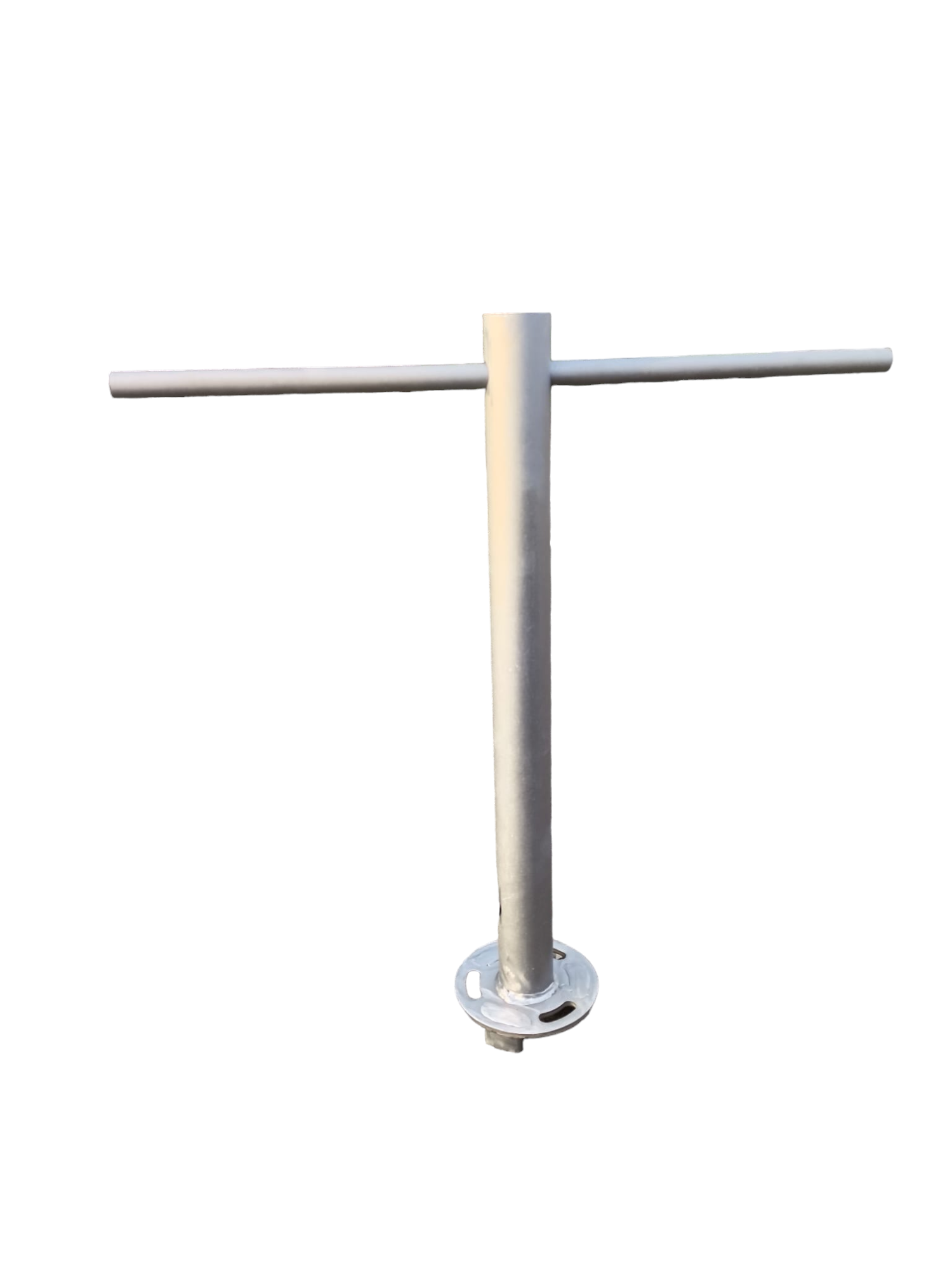

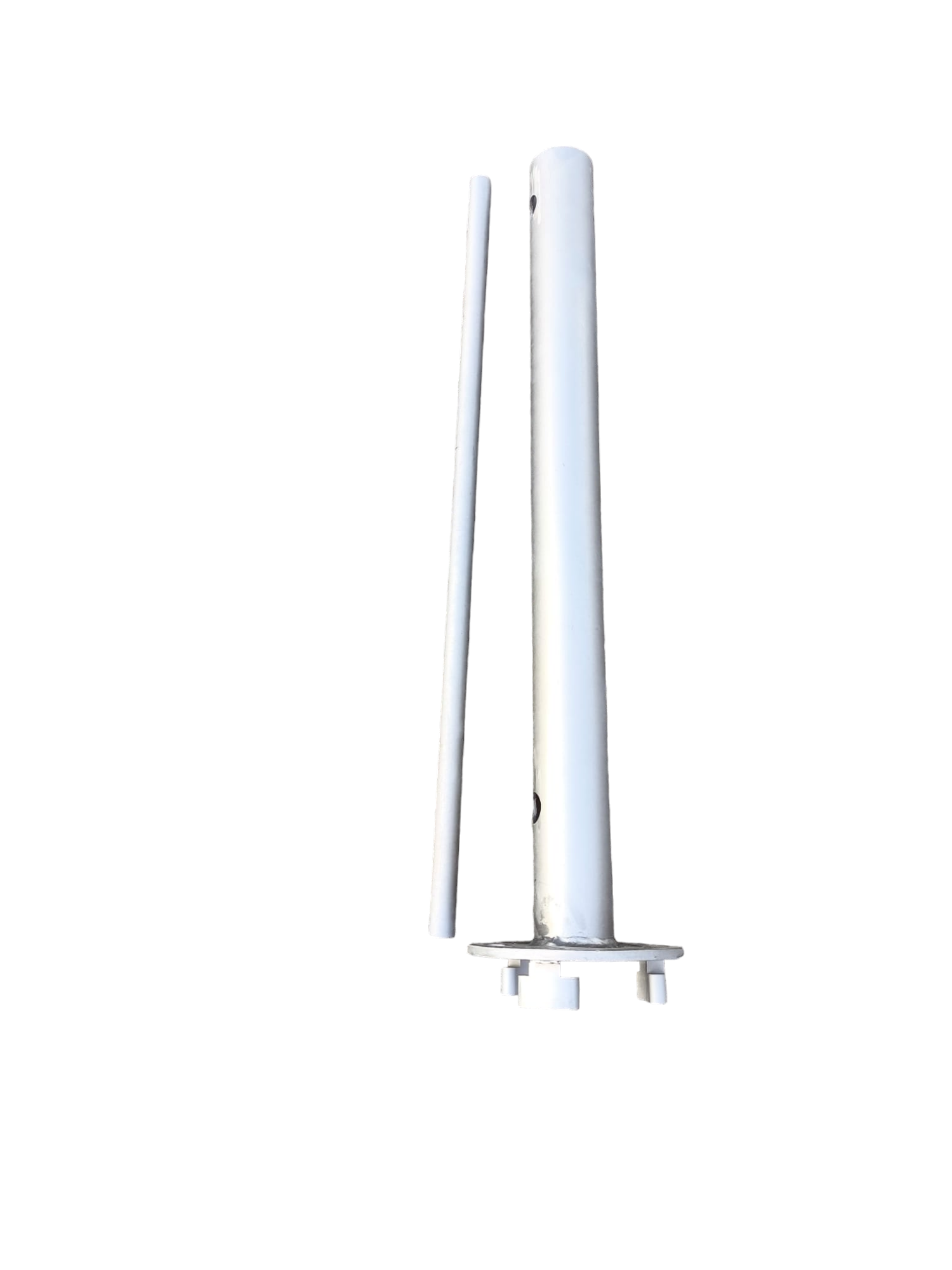

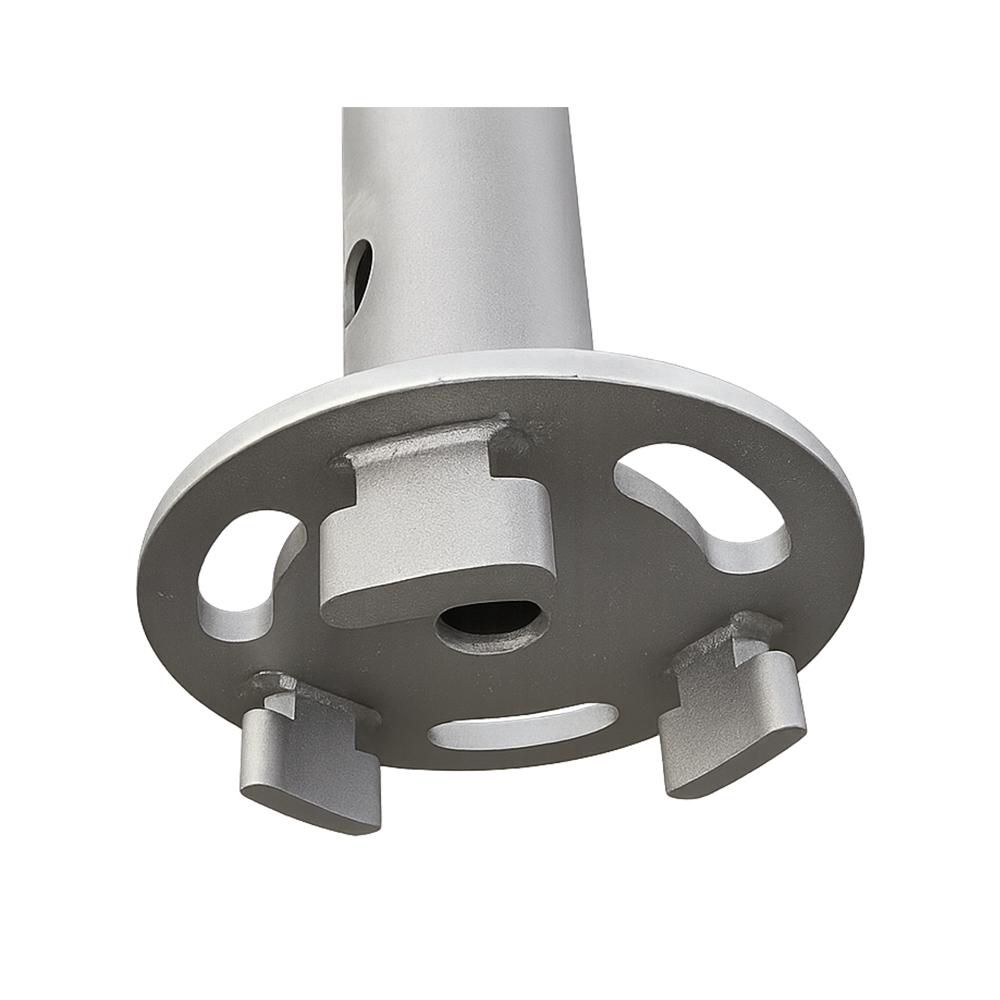

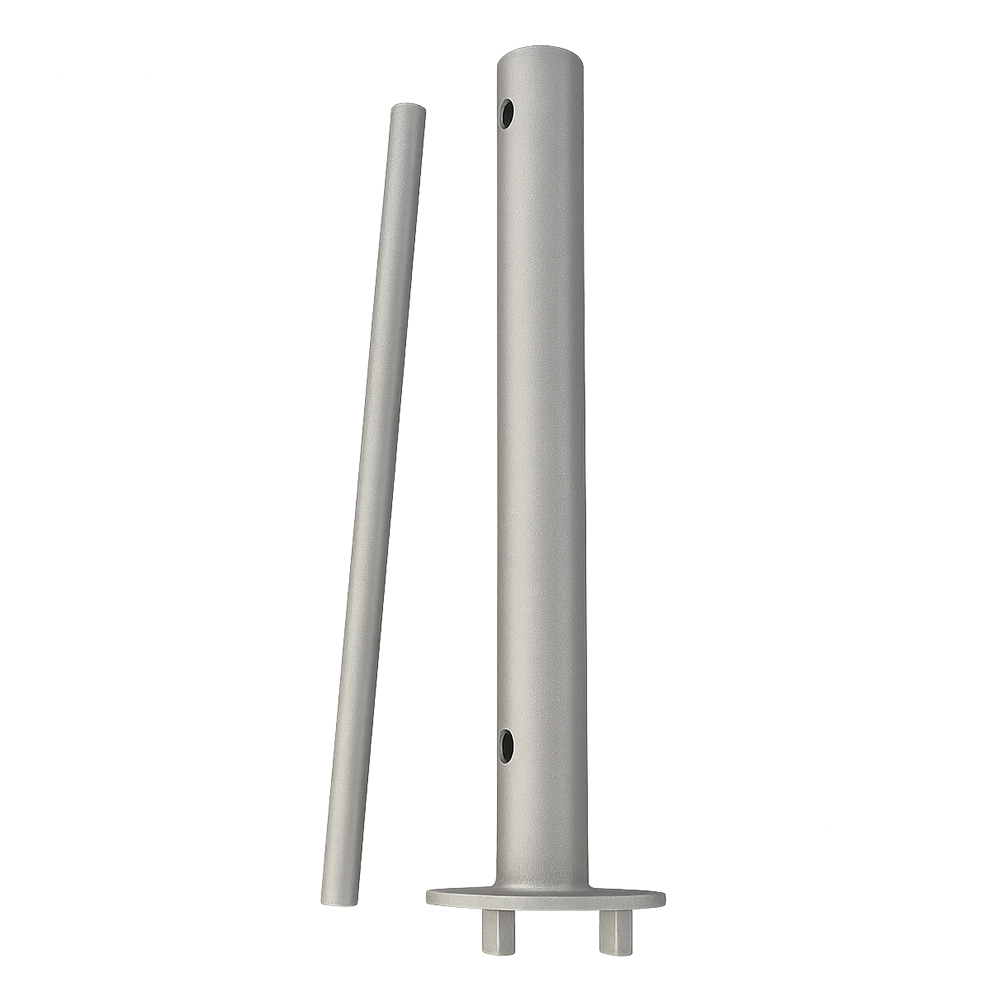

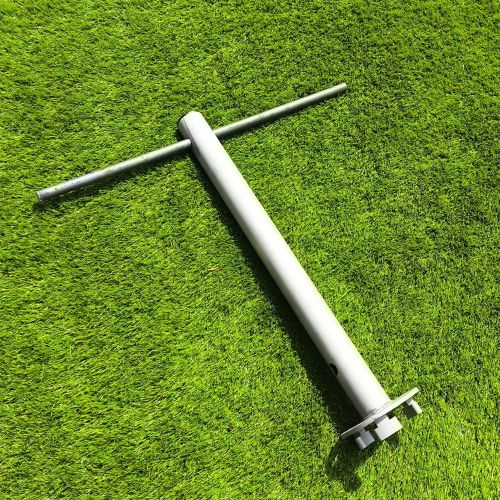

This heavy-duty manual installation tool is designed specifically for use with our 900mm and 1200mm ground screws, featuring a 160mm welded head and M16 threaded insert.

It provides a fast, secure, and accurate installation process without the need for powered equipment—perfect for DIY use, contractors, or remote locations where access is limited.

Key Features:

  • Custom-fit for ground screws with M16-threaded 160mm head
  • Manual operation – no machinery or concrete needed
  • Efficient and clean installation – saves time and effort
  • Heavy-duty steel build – strong, durable, and reusable
  • Ideal for garden, site, and hard-to-reach installations

Compatibility:

  • Compatible with:
    • 900mm x 76mm ground screws (M16 center thread)
    • 1200mm x 76mm ground screws (M16 center thread)

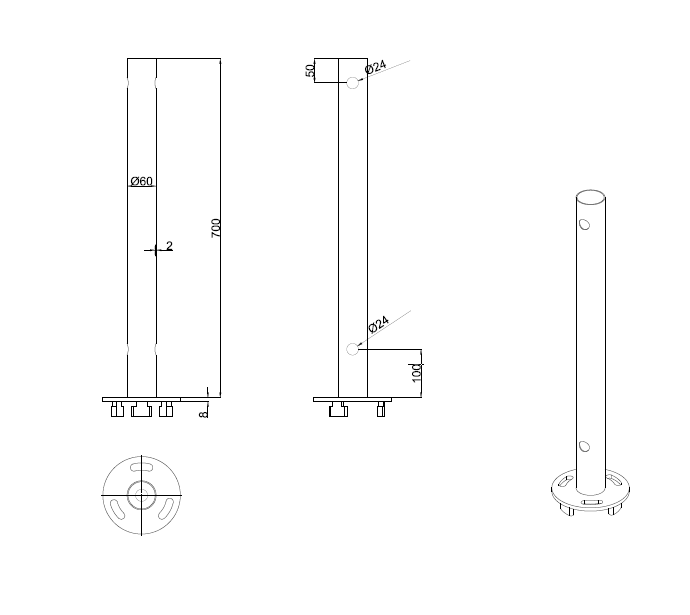

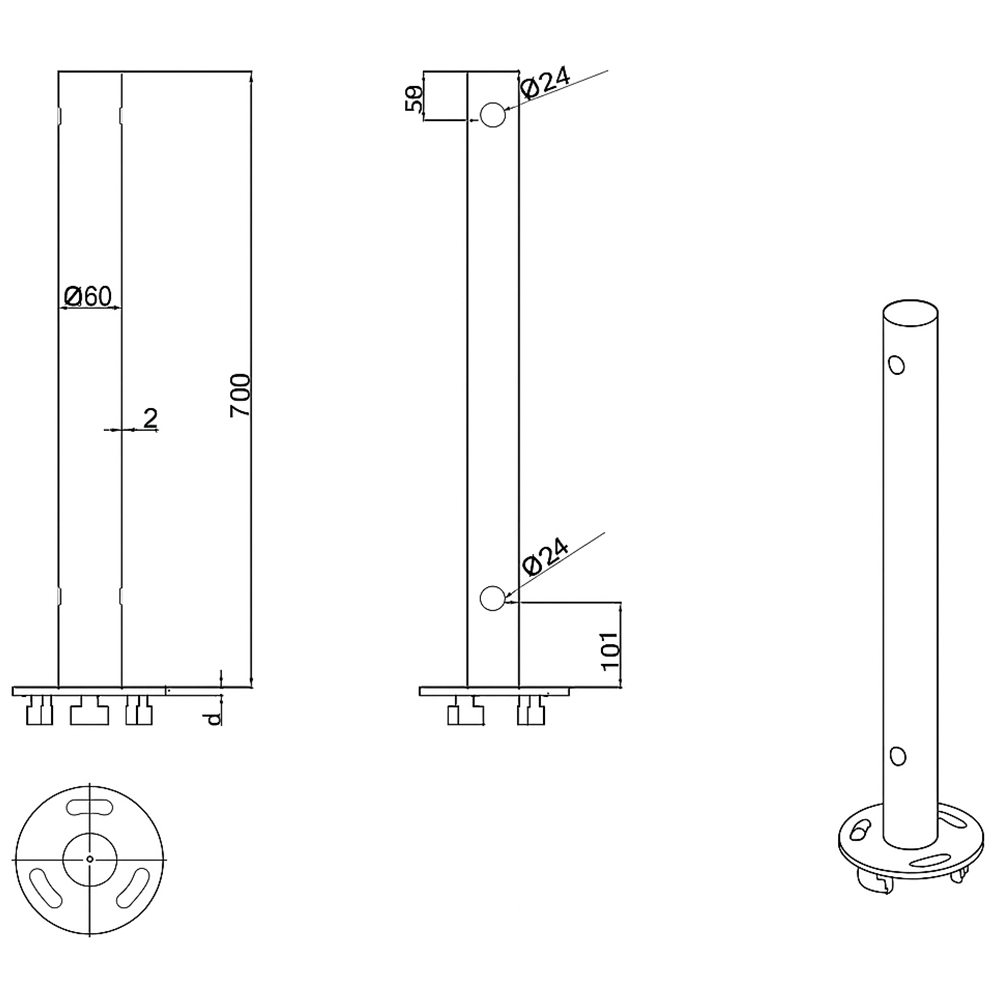

  • Please check product images and drawings before purchase

Typical Ground Screw Applications:

  • Garden buildings, sheds, and summerhouses
  • Timber frame foundations and raised decking
  • Solar panel frames and ground-mounted systems
  • Fence posts, glamping pods, and modular outdoor structures

Ground Screw Reference Specs:

  • 900 x 76 x 160 M16 – Load capacity up to 450kg*
  • 1200 x 76 x 160 M16 – Load capacity up to 730kg*

Timber Spacing Guide:

  • 4×2 C24 timber – max spacing: 1.2m
  • 6×2 C24 timber – max spacing: 2.0m
  • 8×2 C24 timber – max spacing: 3.0m

Important Installation Notes:

  • Test soil firmness before installation
  • Check for underground pipes and cables prior to use
  • We are not liable for any damage caused during self-installation

Fast UK Delivery:

  • In stock and dispatched the next working day
  • Securely packaged for safe delivery

Need Help Choosing?

Not sure if this is the right tool or screw for your project? Contact us – we’re happy to advise.
